Features:
 User's manual (7947KB)
Need More Information?
Email
|
Specifications:
| Operating voltage |
DC 11~18 volts |
| Nicad/Nimh |
1~27 cells |
| Li-Ion/Poly/LiFe |
1~8 series |
| Charge Current |
0.1 to 7.0A |
| Discharge Current |
0.1 to 5.0A |
| PB/Lead Acid |
2V to 36V |
| No. of Cycles |
1 to 5 times |
| Cell Balancer |
Up to 8S (series) Li-xx |
| Power |
150 Watts |
| Weight |
1000g |
| Dimension |
160x120x40 mm |
| Battery temperature cut-off |
20 to 80C or OFF |
| Trickle Charge Mode |
On/Off up to 200 Mah |
| Battery Data Memory |
Up to 10 memory storage |
| Maximum charging capacity
limit for safety |
10 to 9990mAh or OFF |
| Key beep and buzzer sound |
ON/OFF |
| Input power low alert |
10 to 11V |
| LCD back-light brightness |
0 ~ 100 % |
| ------------------- |
------------------- |
| Optional Accessories: |
ThunderPower, Kokam Align & Polyquest
Adapters |
|
DC Power Source Or |
|
AC/DC Power Supply |
| ------------------- |
------------------- |
|
|

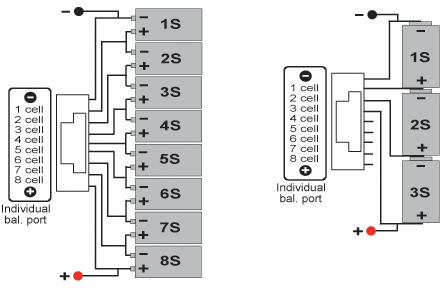

| BC-8 Wiring Schematic
|
|
